Technodrive:  Brand Overview  <   Products
Hydraulic Power Take-Off

PFI 60

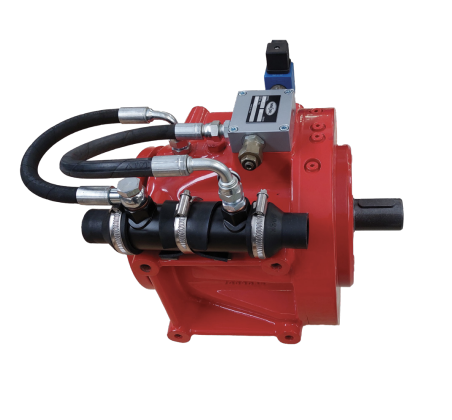

The Technodrive PFI 60 gives you broad coverage in rugged-duty, high-horsepower hydraulic PTOs. The compact but powerful PFI 60 can mount to an engine, remote mount with shaft input, mount to the input or output of our pump drives, and have a shaft or pump mounting pad as options.

Specifications
  • Multiple disc clutch in oil bath
  • Hydraulically operated with 24V DC solenoid selector for remote control
  • Input cylindric shaft, output cylindric shaft, or female splined shaft for hydraulic pump connection
  • SAE #3, #2, or #1 housing, or free-standing mounting possibilities
  • Right or left hand input rotation
  • Oil cooling by an external heat exchange
Technical Data
Enlarge

Maximum torque

600 Nm (443 lb-ft)

Maximum Speed

3200 rpm

Weight

80 kg (176 lbs)

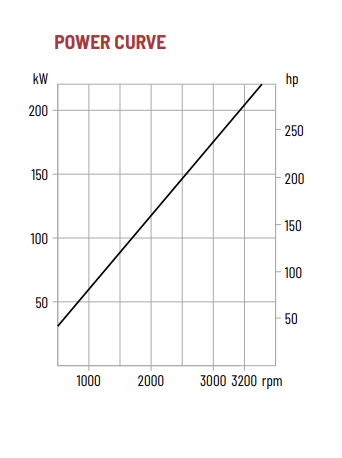

PTO selection is to be mode multiplying the net input power by the service factor: 1.0 for centrifugal pumps; 1.3 for hydraulic pumps; 1.5 for direct winch drivers; 2.0 for crushers. The resulting power is to be below the line on the graph.

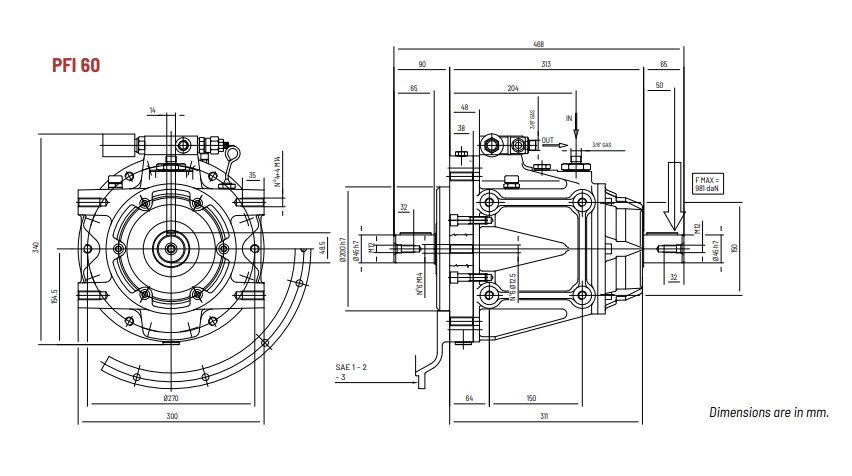

Diagram

Dimensions are in mm

Enlarge
