TM 265

Technodrive: Brand Overview <

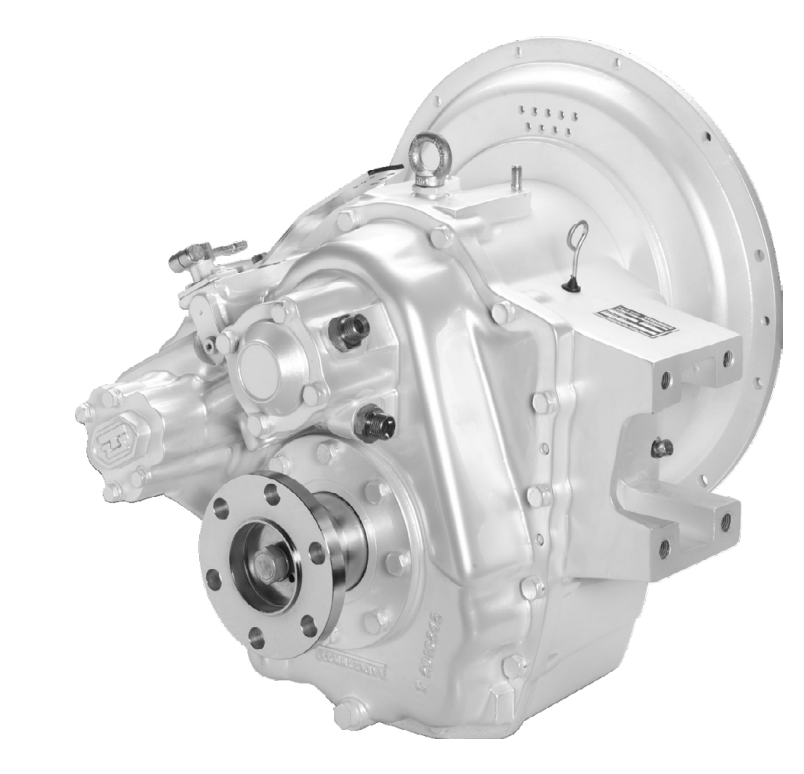

The Technodrive TM 265 marine transmission is equipped with hydraulically operated multi-disc clutches. The clutches and gears are engineered to deliver full engine power in both forward and reverse, maintaining the same gear ratio in either direction.

Specifications Technical Data Torsional Responsibility

Specifications

SAE 1, 2, 3 bell housings
11.5″ and 14″ torsional couplings
Cable bracket
Heat exchanger kit
Trolling valve
Propeller shaft flange
Mounting brackets
PTO (live)
Electric control valve

Technical Data

Reduction Ratios	Pleasure Craft	Pleasure Craft	Intermediate Duty	Intermediate Duty	Continuous Duty	Continuous Duty
	2600 rpm	2800 rpm	2100 rpm	2500 rpm	1800 rpm	2400 rpm
1.50	288 (386)	311 (417)	207 (278)	246 (330)	156 (209)	209 (280)
2.09	288 (386)	311 (417)	207 (278)	246 (330)	156 (209)	209 (280)
2.82	288 (386)	311 (417)	207 (278)	246 (330)	156 (209)	209 (280)

Torsional Responsibility

Disregarding propulsion system torsional compatibility could cause damage to components in the drive train resulting in loss of mobility. At minimum, system incompatibility could result in gear clatter at low speeds.

The responsibility for ensuring that the torsional compatibility of the propulsion system is satisfactory rests with the assembler of the drive and driven equipment.

Diagram Publications

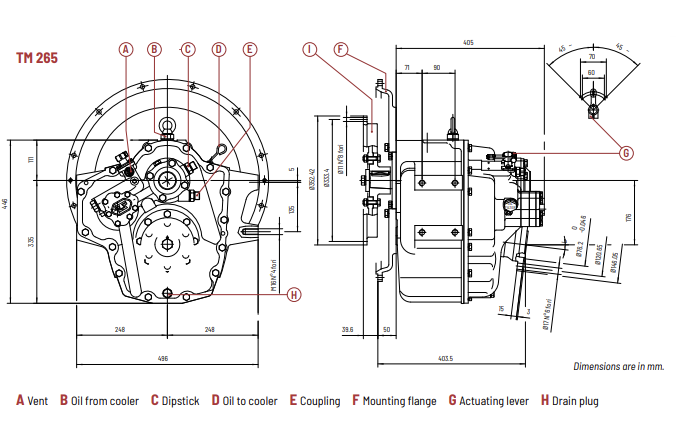

Diagram
