TMC 60 A

Technodrive: Brand Overview <

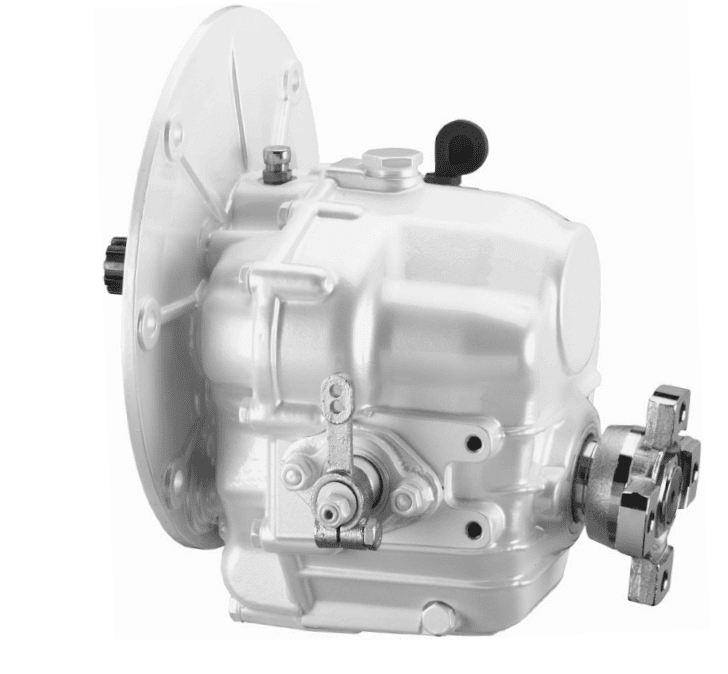

The Technodrive TMC 60 A marine transmission is equipped with conical clutches that are mechanically operated and activated by a servo-system. The gears are specially designed for smooth, quiet operation, and the bearings are generously sized for durability and reliability.

Specifications Technical Data Torsional Responsibility

Specifications

BW Housing
SAE 5 bell housing
Cable bracket

Technical Data

Reduction Ratios	Pleasure Craft	Pleasure Craft	Intermediate Duty	Intermediate Duty	Continuous Duty	Continuous Duty
	3000 rpm	3600 rpm	2800 rpm	3000 rpm	1800 rpm	2300 rpm
2.00	41 (55)	49 (66)	32 (43)	35 (47)	17 (23)	22 (30)
2.45	41 (55)	49 (66)	32 (43)	35 (47)	17 (23)	22 (30)

Torsional Responsibility

Disregarding propulsion system torsional compatibility could cause damage to components in the drive train resulting in loss of mobility. At minimum, system incompatibility could result in gear clatter at low speeds.

The responsibility for ensuring that the torsional compatibility of the propulsion system is satisfactory rests with the assembler of the drive and driven equipment.

Diagram Publications

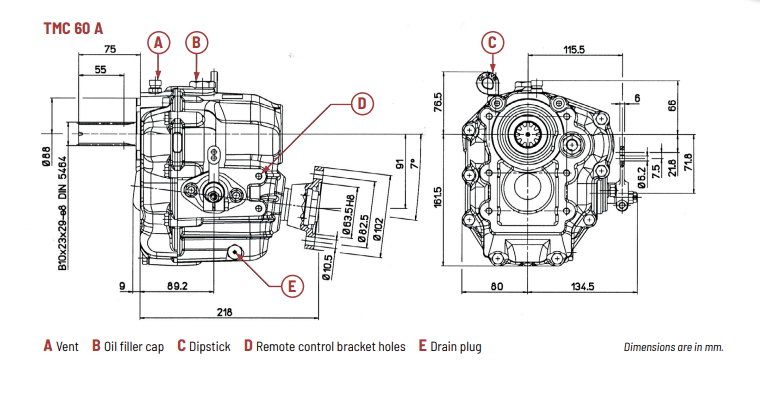

Diagram
