Products   <   Pump Drives

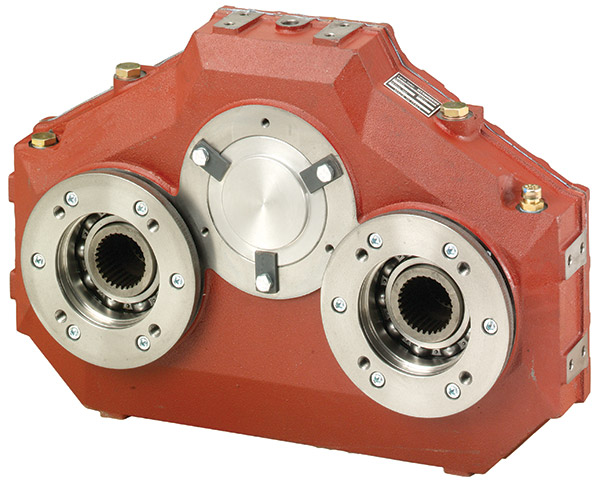

AM 230

Description

Maximum Input Power 430 kW (577 hp)
1:1 ratio @ 2600 rpm

  • Cast iron housings
  • Shaved gears
  • Ball bearings
  • Case hardened shafts
  • Viton seals on input shaft
  • Output rotation opposite the direction of input rotation
  • Gear ratios identical on all outputs
  • Maximum input torque based on theoretically unlimited gear life and a minimum L10 bearing life of 10,000 hours
TECHNICAL DATA

Ratio
:1

MAXIMUM
INPUT TORQUE
N-m (lbf-ft)

MAX. OUTPUT TORQUE
PER PUMP PAD
N-m (lbf-ft)

MAXIMUM
INPUT SPEED
RPM

MAXIUM
OUTPUT SPEED
RPM

OIL QUANTITY
L (gal)

0.51

2080 (1534)

530 (391)

1950

3824

5.5 (1.45)

0.58

2010 (1482)

580 (428)

2050

3534

5.0 (1.32)

0.67

1910 (1409)

640 (472)

2200

3284

4.5 (1.19)

0.76

1840 (1357)

700 (516)

2300

3026

4.0 (1.06)

0.89

1680 (1239)

750 (553)

2400

2697

3.7 (0.98)

1.00

1620 (1195)

810 (597)

2600

2600

3.7 (0.98)

1.31

1390 (1025)

910 (671)

3000

2290

3.2 (0.85)

1.48

1270 (937)

940 (693)

3200

2162

3.0 (0.80)

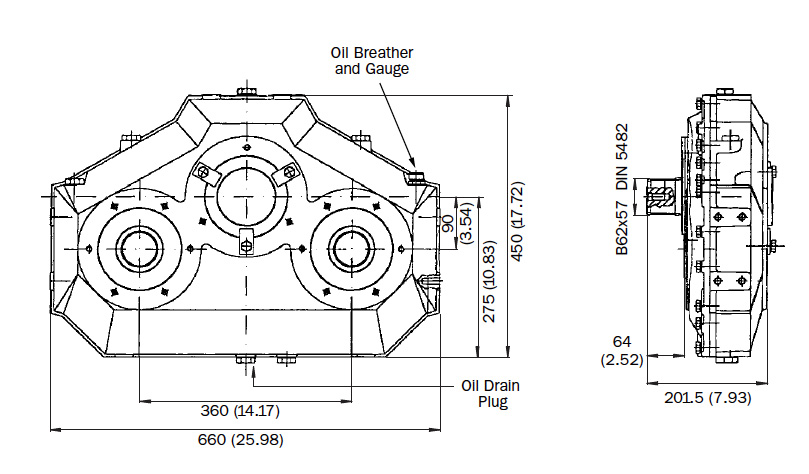

DIMENSIONS
Enlarge
