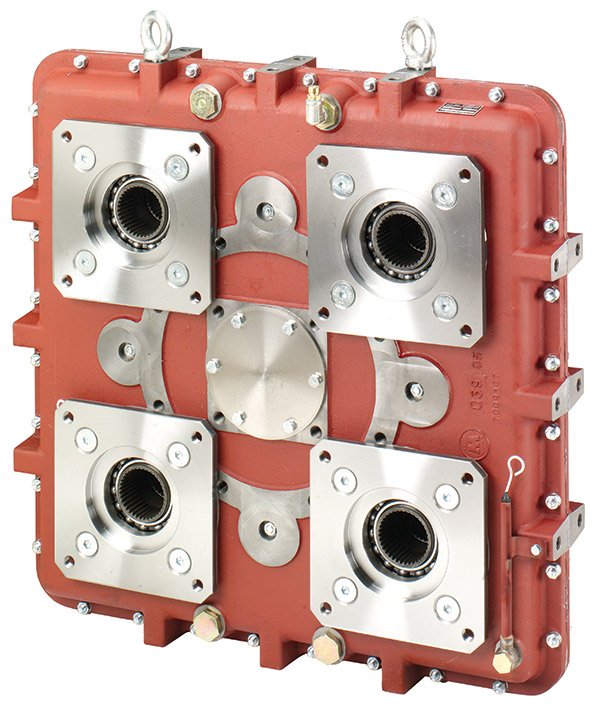

AM 480

Description

Maximum Input Power 700 kW (939 hp)
1:1 ratio @ 1800 rpm

  • Cast iron housings
  • Case hardened and ground spur gears
  • Ball bearings
  • Case hardened shafts
  • Viton seals on input shaft
  • Output rotation opposite the direction of input rotation
  • Gear ratios identical on all outputs
  • Maximum input torque based on theoretically unlimited gear life and a minimum L10 bearing life of 10,000 hours

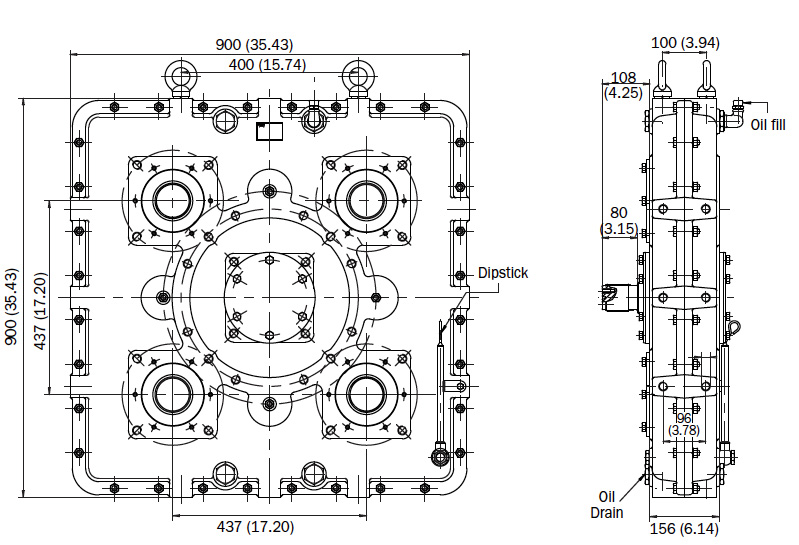

DIMENSIONS
Enlarge
